Transform your home's entryway into a work of art with the Miranda 9 Lite Arch-Top Single Entry Door! This stunning door is crafted from luxurious mahogany, ensuring both beauty and durability. Its True Divided Lite clear bevel insulated Low-E glass let in natural light while keeping your home energy efficient - a smart investment. And at 3'0" x 8'0", it's the perfect size for your front entryway. Every inch of the Miranda 9 Lite Arch-Top Single Entry Door exudes quality craftsmanship, from its intricate design to its flawless finish. You'll love the way this door elevates the look of your home, impressing guests and neighbors alike.
Invest in the beauty, quality, and value of the Miranda 9 Lite Arch-Top Single Entry Door today and create an entryway that will leave a lasting impression!

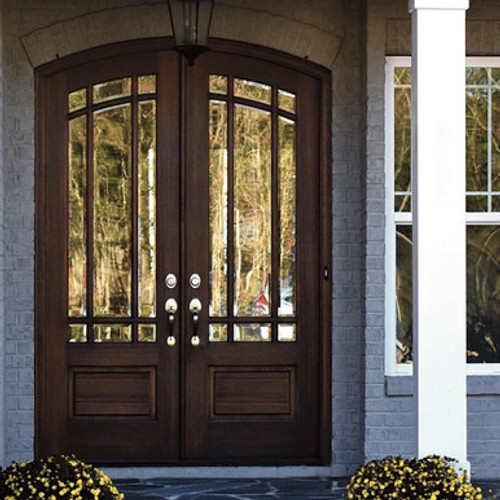

The Miranda arch door is the most sought-after wood exterior doors we offer, and with good reason. The Miranda has traditional elements that are the perfect fit for many homes from traditional colonial homes, cottages, and modern farmhouse style homes making it one of the most popular options for front doors for homes.
This popular wooden arch door provides configuration options for single entry doors, double front doors and double entry doors with choices between arch doors or special-order square top doors. We can also offer the Miranda in custom configurations including doors with sidelights, doors with sidelights and transoms as well as custom sizes. We offer the Miranda arch door in 4-Lite, 6-Lite, 7-Lite, and 9-Lite designs that feature true divided lite (TDL) Low E Glass providing natural light to your home, while still providing energy and thermal efficiency.
Miranda 9 Lite Single Arch Wood Entry Door
The Miranda 9-lite arch exterior wood door offers an engineered stile and rail construction crafted of a hardwood laminated veneer lumber core offering more stability and resistance to warping than solid wood. The Miranda is a True Divided Lite (TDL) entry door featuring individual glass units divided by muntin bars. Low-E glass better insulates your home by keeping heat from escaping during the cooler months, and helps to minimize the heat entering your home during the warmer months.
All wooden front doors are priced and delivered as unfinished (not stained) pre-hung units.
The Miranda offers
- 3'0" X 8'0" size (Custom sizes available with quote)
- 1-3/4" stain grade mahogany (Okoume)
- Clear bevel and flemish glass options
- Low-E glass (Low Emissivity Glass) - Tempered / Insulating Glass
- Wood entry door with engineered stile and rail construction
- Hardwood stave core with mahogany veneer offers more stability and resistance to warping than solid wood.
- Unfinished (not stained), prehung exterior door unit includes the jambs, exterior brickmould, weather-stripping, door sweep, adjustable threshold (sill), 4x4 ball bearing hinges.
- Can be considered an option for those seeking interior / internal doors with glass (contact us to inquire)
Entry Door Sizes
| Door Size | Frame Size | Rough Opening | Outside Brickmould |
|---|---|---|---|
| 3'0" x 8'0" | 37 3/4" x 99" | 38 1/2" x 99 1/2" | 40 1/4" x 100 1/4" |
Custom sizes and options available upon request.
Entry Door Energy Performance
U-Factor, Solar Heat Gain Coefficient in accordance with the National Fenestration Rating Council (NFRC). The National Fenestration Rating Council (NFRC) is a United States 501(c)3 non-profit organization which sponsors an energy efficiency certification and labeling program for windows, doors, and skylights.
- U-Factor (Btu-in/hr-ft2-F) = 0.40
- Solar Heat Gain Coefficient (SHGC) = 0.21
Pre-Hung Door Unit
- 4-9/16" or 6-9/16" wide jambs (with 4-9/16" jamb commonly used for 2x4 framing and 6-9/16" jamb commonly used for 2x6 framing). Custom jamb sizes available upon request.
- Q-lon weatherstripping (made of polyethylene-clad urethane foam) applied at the top and sides of the prehung door to keep out drafts
- Commercial grade 4"x4" bearing hinges in Black/Oil Rubbed Bronze or Satin Nickel
- Adjustable aluminum door sill (threshold) in Black/Oil Rubbed Bronze or Satin Nickel
- Door sweep to seal the gap between the bottom of the door and the threshold/sill
- Pre-drilled door for handle and deadbolt (on double we typically recommend only the active since the requirements for the passive or “dummy” handle are unknown unless we are providing the handleset hardware)
- Exterior brickmould
- Double entry door units include T-astrigal and a pair of flush-mount slide bolts installed on the secondary (passive) door
Door Jambs
Our pre-hung units are hung on on slotted jambs for installation of weather-stripping.
- Q-lon weatherstripping (made of polyethylene-clad urethane foam) applied at the top and sides of the door to keep out drafts
- 4-9/16" jamb is most commonly used for 2x4 framing
- 6-9/16" jamb is most commonly used for 2x6 framing
- Custom jamb sizes available (additional charges may apply)
Hinges

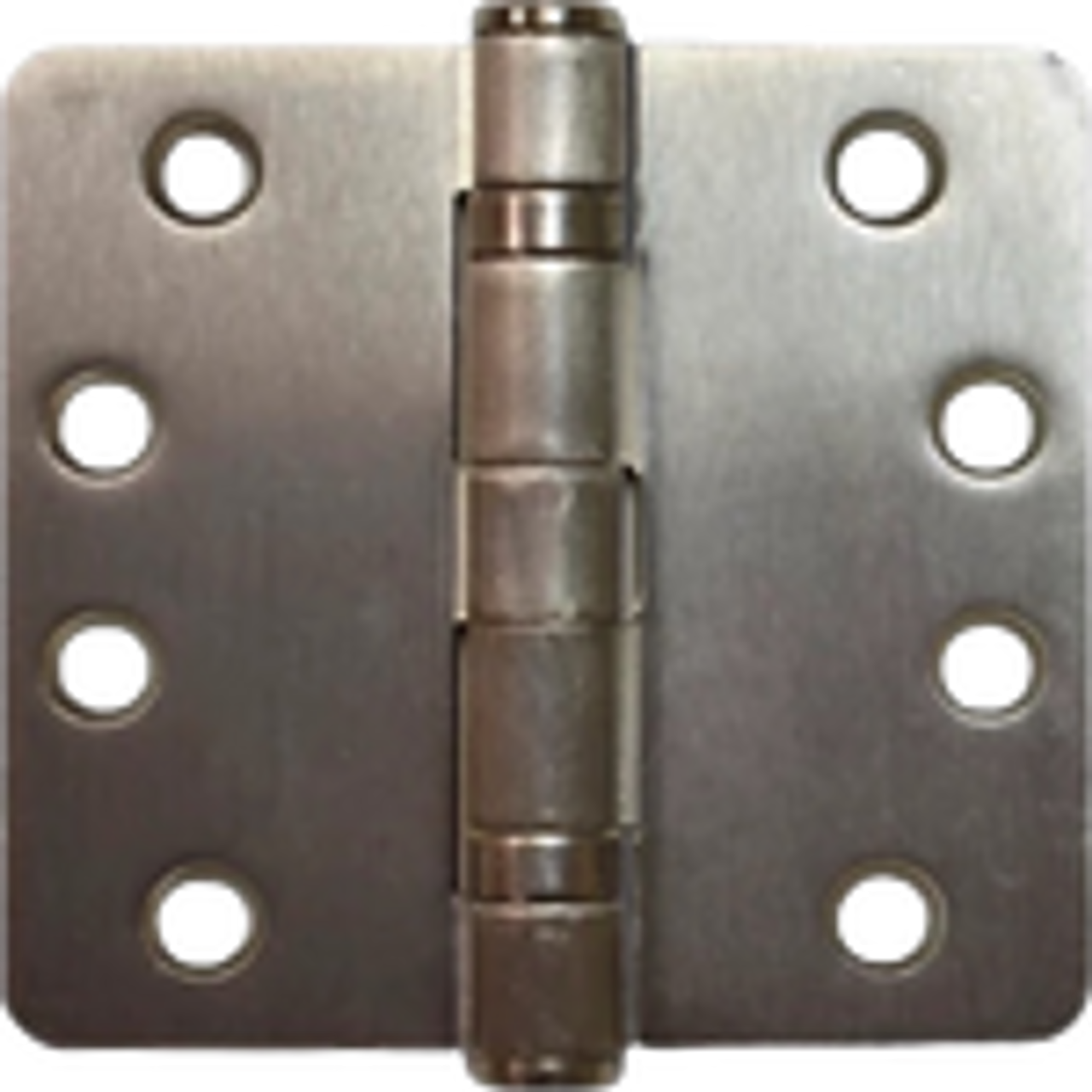

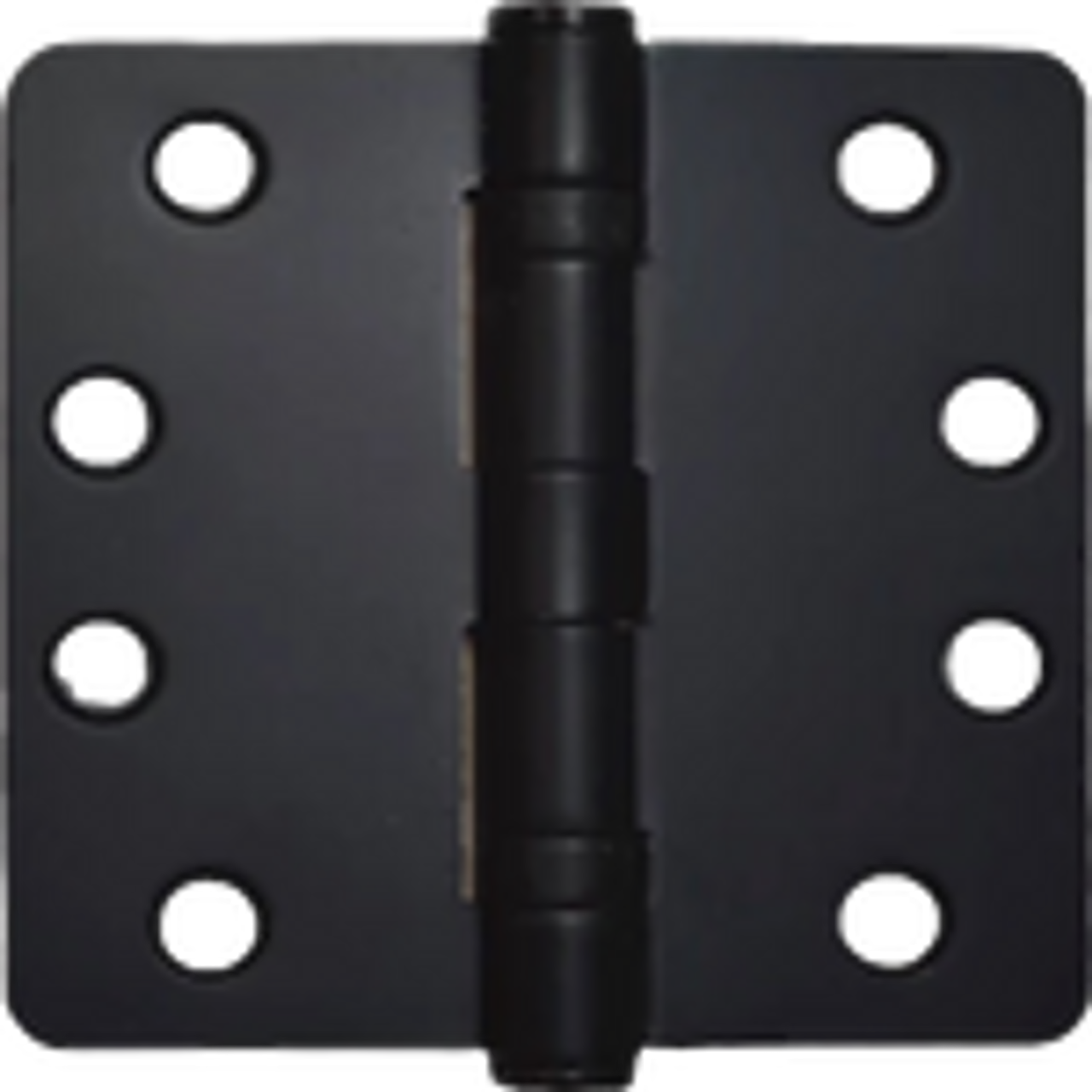

Our pre-hung units include commercial grade, 4x4 ball bearing hinges.
- 4"x4" commercial grade ball bearing hinges (Three are used on 6/8 doors and arch top doors, and four on taller square top units).
- Non rising steel pin with button tip and plug
- Rounded 1/4" radius corner
- Black/Oil Rubbed Bronze or Satin Nickel finish
Sill / Threshold

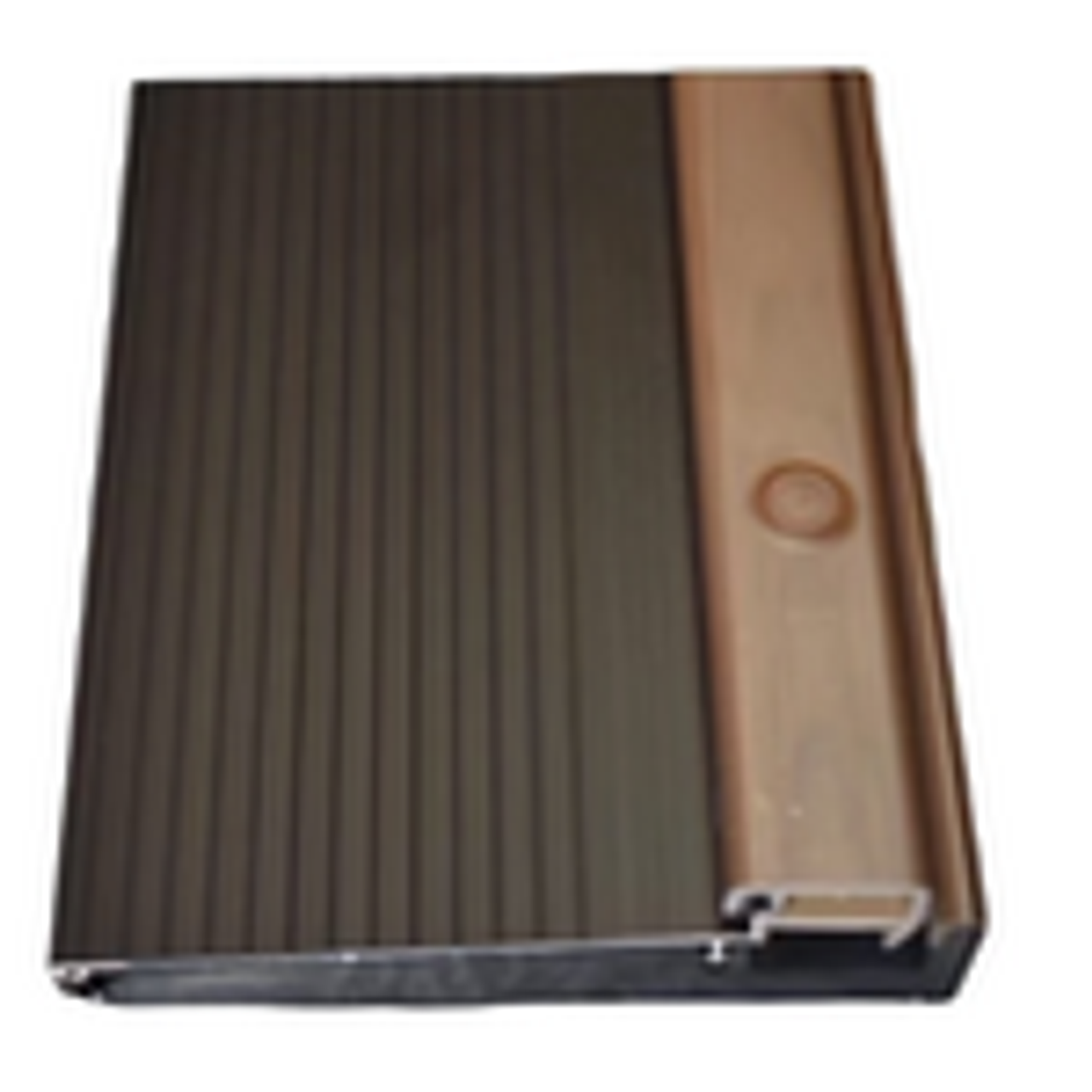

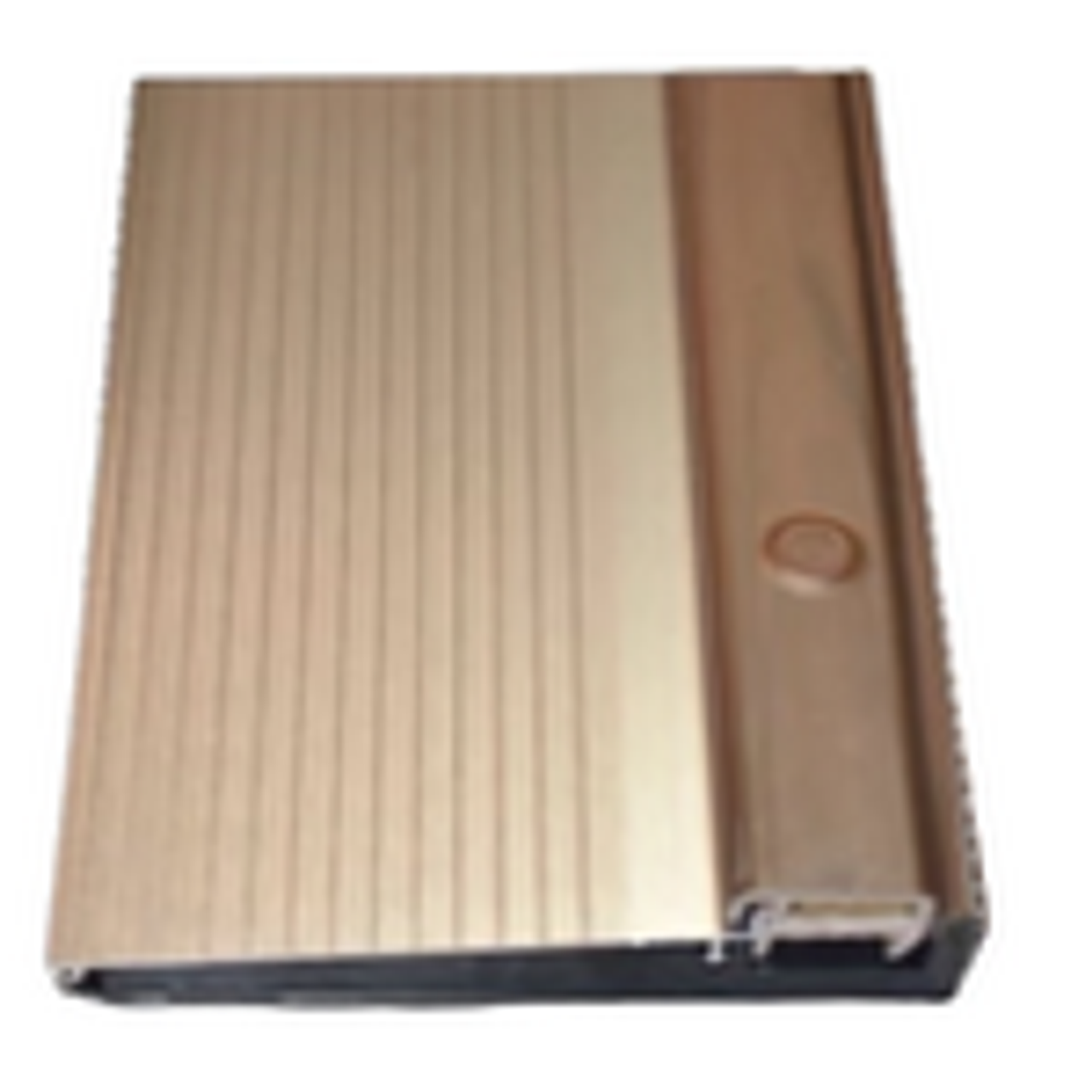

Each pre-hung unit comes with a composite adjustable aluminum sill. The composite aluminum is used to prevent warping, rotting, etc.
- Features a composite substrate that will not warp or rot, eliminating the worries of wood.
- Black/Oil Rubbed Bronze or Satin Nickel finish
- Outswing bumper sill available for outswing units
- Low-profile (ADA-compliant) sills are available. Please contact us for pricing
Wood Door Handleset Preparation
- Pre-drilled door for handle and deadbolt (on double we typically recommend only the active since the requirements for the passive or “dummy” handle are unknown unless we are providing the handleset hardware). Single bore on passive can also be provided.

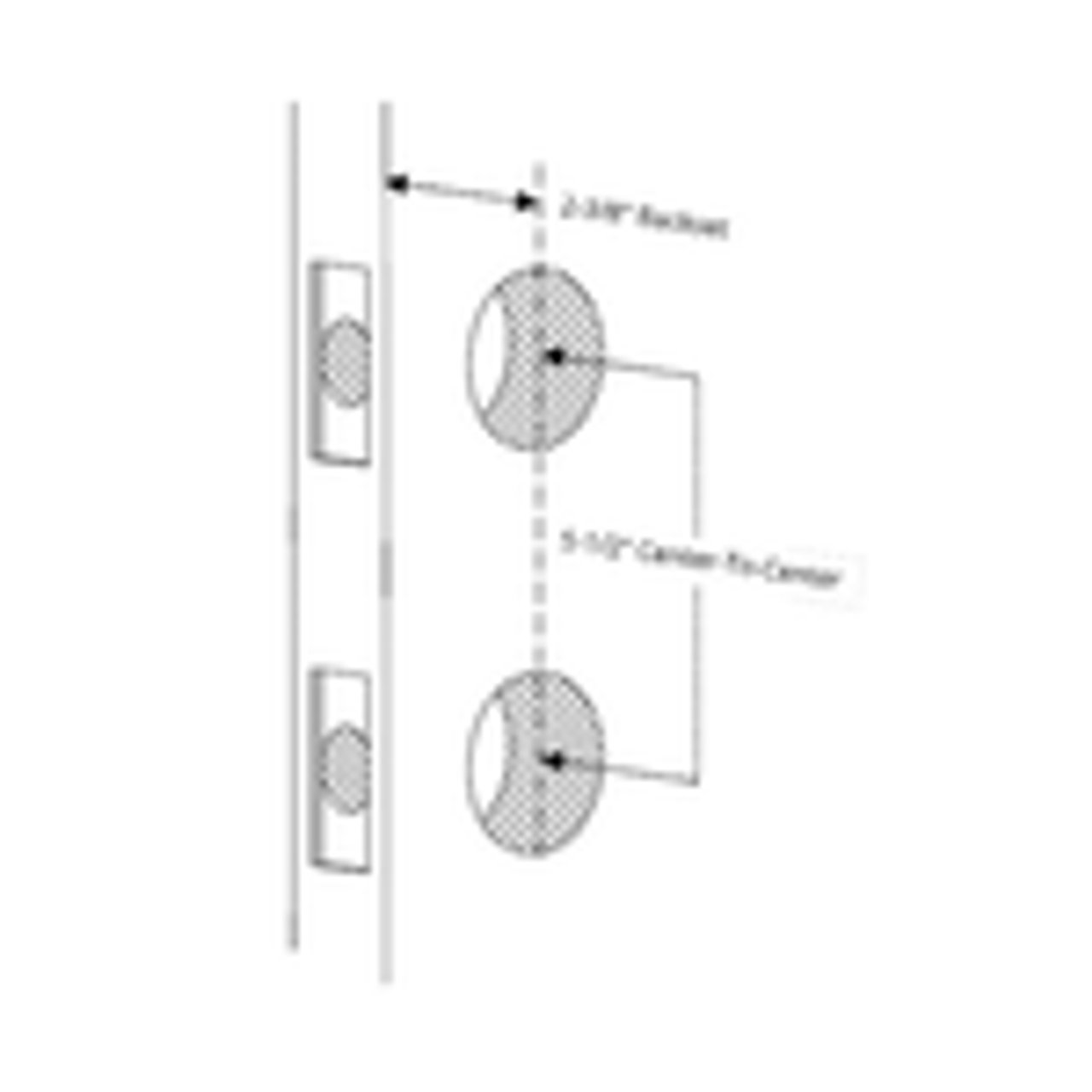

- Standard Handle and Deadbolt Preparation at 2-3/8" backset (2-3/4" available upon request)
- Bore diameter: 2-1/8"
- For double bore, deadbolt is drilled 5-1/2" above the handle

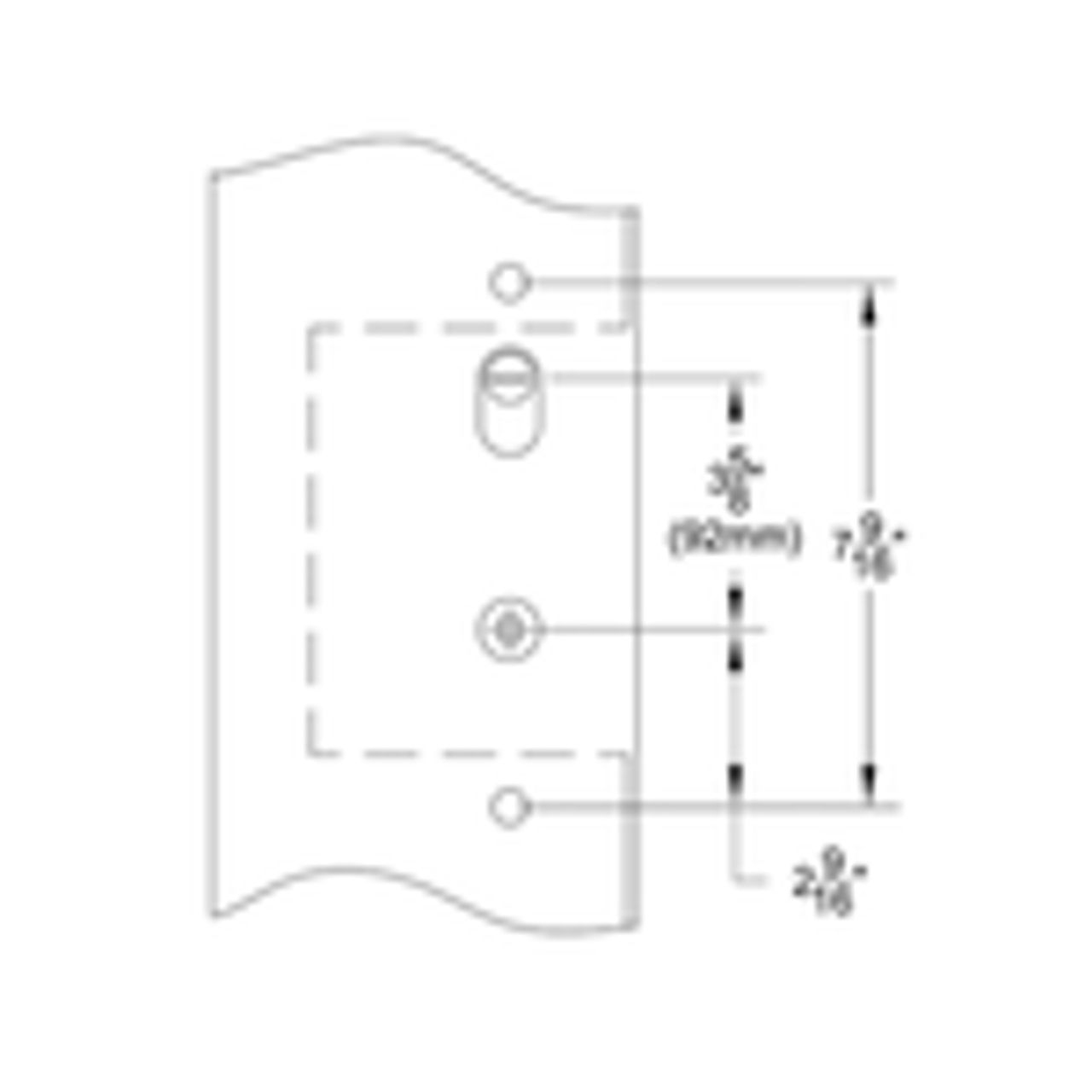

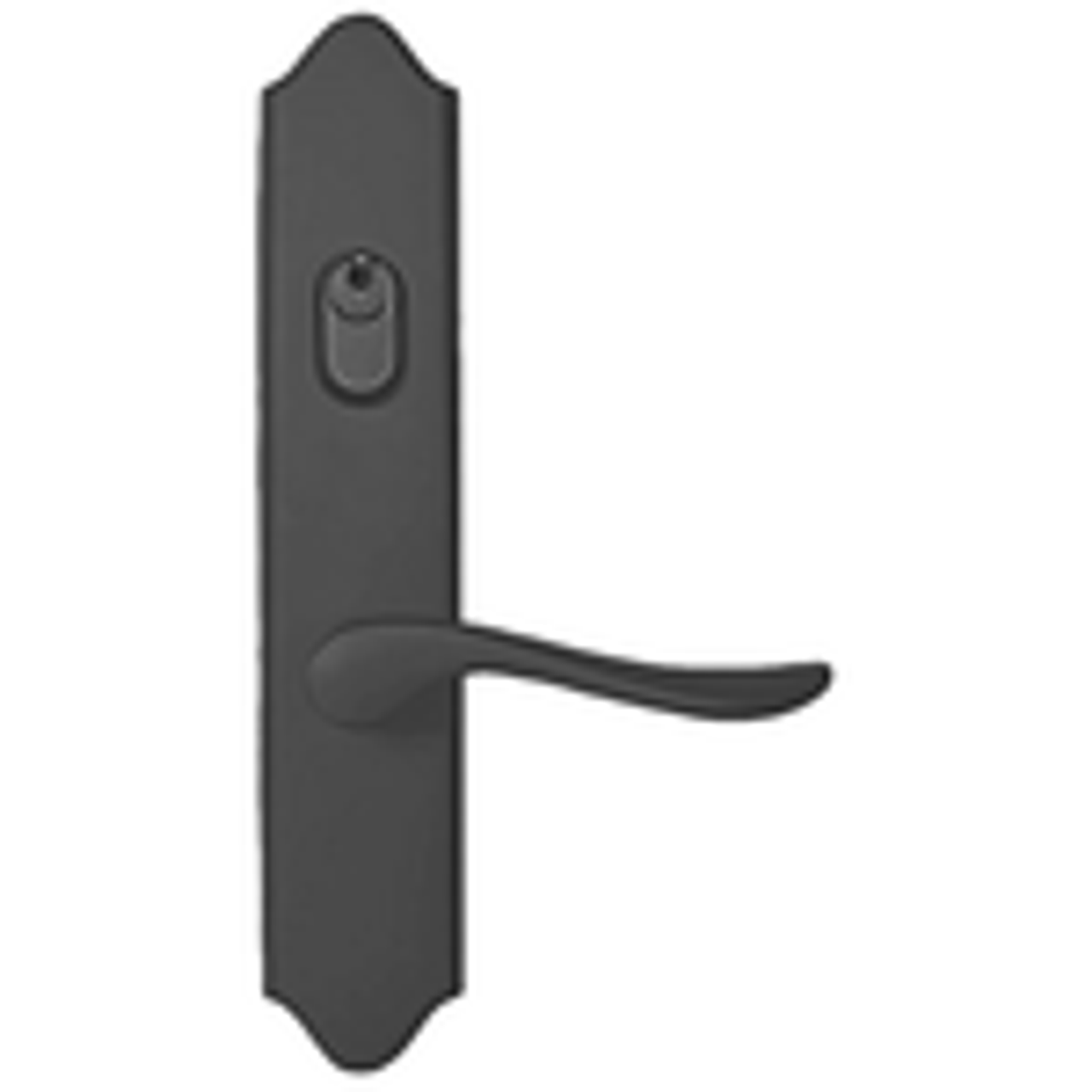

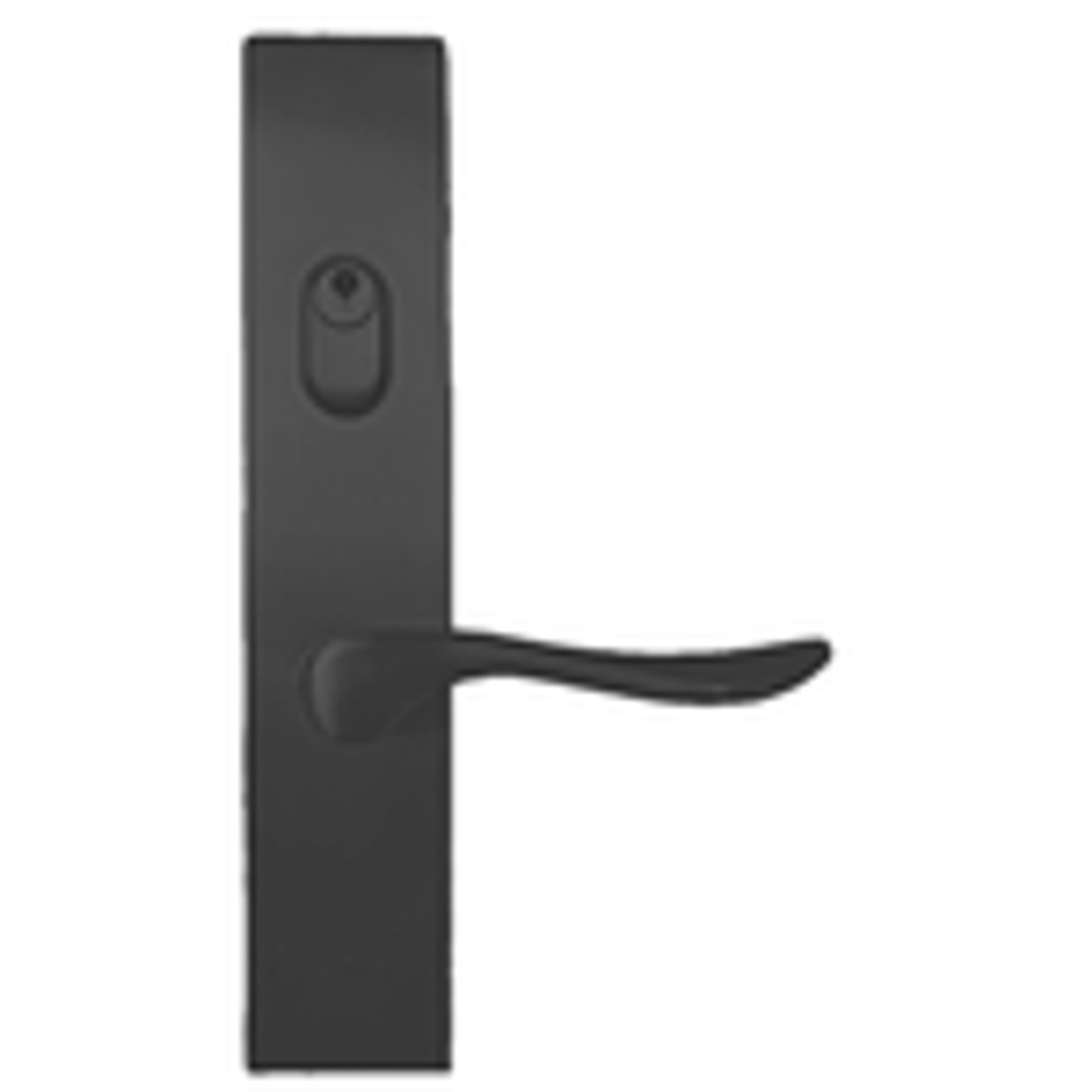

- Multipoint locking also available
Additional Information Regarding Pre-Hung Units
Product Compliance & Suitability
Jurisdictions have varying laws, codes and regulations governing construction, installation, etc. Please review applicable laws, codes and regulations for your local jurisdiction to be sure that the construction, installation, and/or use involving the units is compliant.
Florida Approval Code: No
FSC Certified: No
Requirements For Adequate Overhang Protection Of Wood Door
Installer must ensure proper protection requirements are provided where the door will be installed. All doors must be installed providing sufficient protection from exposure to weather including excessive moisture/rain as well as excessive heat due to sun exposure. This protection required includes adequate overhang distance that is at a minimum projection from the home at one half the distance from the floor of the overhang to the ceiling of the overhang.
